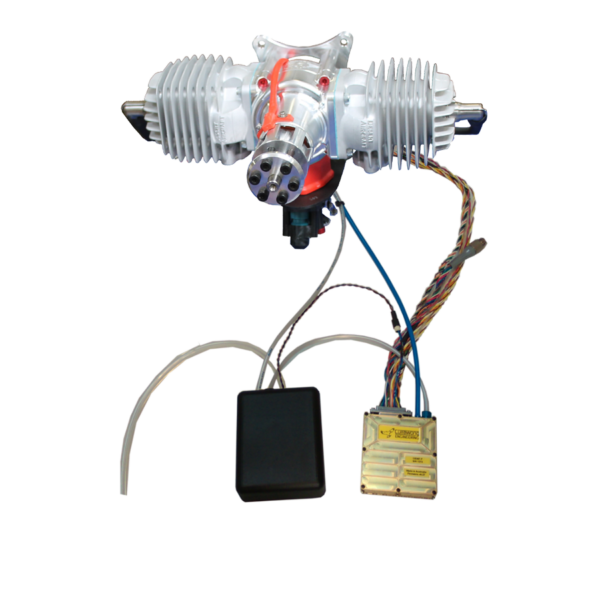

DA 120 EFI MIL SPEC UAV Engine

DA 120 EFI MIL SPEC UAV Engine by HFE International comes complete with state-of-the-art electronic fuel injection.

The MIL SPEC version features a tried and true fuel injection system. With more than 67,000 flight hours, this system is operational on over 700 aircraft in various environments throughout the world.

Reliability

The system is tested to 20,000 foot altitude with temperatures ranging from -10°F to 120°F.

This system followed the test methods under MIL-STD-810, testing out the majority of the laboratory methods available.

Alternator Options

500W Starter Alternator

This 3 phrase brushless alternator drives direct on the engine crankshaft. The stator mounts to the crankshaft casing; the rotor spins on the crankshaft.

The system can be paired with a 500 W Power Management Unit with an integrated starter controller, allowing the engine to start remotely. The PMU provides three lines with a chosen voltage in the range:

24 – 28 VDC at 12.5A or 350W max, 12 – 15 VDC at 9A or 108W, and 4.8 – 8 VDC at 8A or 42W.

Configurable with LiIon, LiPo, LifePO4, SLA, NiCad, NiMH, and Lead Acid Battery.

Custom Alternators

Custom options are available upon request.

Contact HFE International to discuss your setup.

DA 120 EFI Mil Spec UAV Engine Downloads

DA 120 EFI Data Sheet

DA 120 EFI Mil Spec Owner’s Manual

DA 120 EFI MIL SPEC UAV Engine WOT Graph

About HFE International

HFE International develops and manufactures high end propulsion systems for UAV’s, drones, unmanned systems, and ground support equipment. These propulsion systems include fuel-injection and rotary systems with gasoline and multi/heavy fuel operation.

Founded in 2010, the company’s aim was to address the growing demand for reliable, small engines at an affordable price point. With over 1,000 units sold – at 25% the cost of the closest competitor – HFE engines are in use throughout the world including use by the US Armed Forces.
