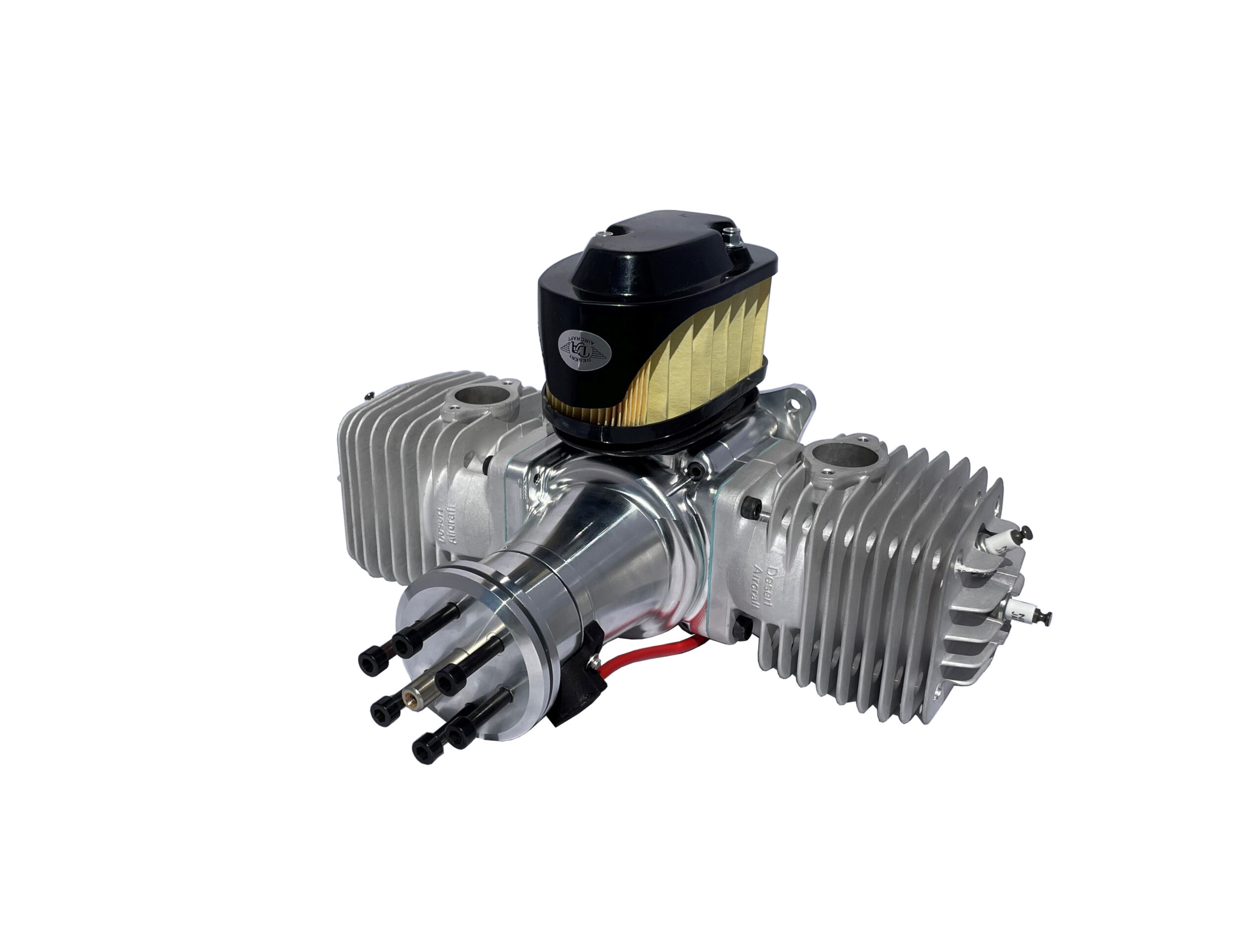

DA 215 EFI UAV Engine
Price range: $15,378.97 through $20,781.22
The DA 215 EFI UAV Engine is a 215 cc two-stroke engine that HFE International converts to electronic fuel injection for UAVs and unmanned aircraft. It delivers 14.9 hp (11.1 kW) continuous at 7,000 RPM and 20.0 Nm (14.7 lb-ft) of torque at 2,500 RPM, and weighs 10.9 lb (4.94 kg) with throttle body. It is the most powerful engine in the HFE DA EFI series.
Key figures:
- Displacement: 215 cc (13.1 ci)
- Continuous power: 14.9 hp (11.1 kW) at 7,000 RPM
- Max torque: 20.0 Nm (14.7 lb-ft) at 2,500 RPM
- Operating range: 2,000 to 8,000 RPM
- Engine weight: 10.9 lb (4.94 kg) with throttle body
- Fuel: pump gasoline with two-stroke oil at 40:1
- Tested from sea level to 10,000 ft and 10°F to 120°F
Pricing may vary depending on your configuration needs. Shown prices are estimates.
Please contact HFE International for custom options and pricing.
- Description
- Additional information
Description
DA 215 EFI UAV Engine is fit with state of the art electronic fuel injection.
A special magnet configuration mounts in the prop hub and allows the prop to easily flip for no-fuss starting.
A single 3 cell Lipo battery of 1500mah or larger capacity, powers the ECM. At full throttle, the total power draw is only 12 watts (1 amp).
Alternator System Options
200W Power Management Unit
3 phase brushless alternator direct drives on the engine crankshaft. The stator mounts to the crankshaft casing. The rotor spins on the crankshaft.
The PMU provides three lines with a chosen voltage in the range: 12-15 VDC at 15A or 200W max and 4.8-7 VDC or 42W max.
Configurable with Lilon, LiPo, LifePO4, SLA, NiCad, NiMH, and Lead Acid Battery.
24 V option available, contact HFE International for information and pricing.
500W Starter Alternator
This 3 phase brushless alternator drives direct on the engine crankshaft. The stator mounts to the crankshaft casing. The rotor spins on the crankshaft.
The system can be paired with a 500 W Power Management Unit, with an integrated starter controller, allowing the engine to start remotely. The PMU provides three lines with a chosen voltage in the range: 24-28 VDC at 12.5A or 350W max, 12-15 VDC at 9A or 108W, and 4.8-8 VDC at 8A or 42W.
Configurable with Lilon, LiPo, LifePO4, SLA, NiCad, NiMH, and Lead Acid Battery.
Custom Alternators
Custom options are available upon request.
DA 215 EFI UAV Engine Downloads
System Testing
The system is tested to numerous standards- from sea level to 10,000 foot altitude and temperatures ranging from 10°F to 120°F.
Frequently Asked Questions About the DA 215 EFI UAV Engine
The DA 215 EFI produces 14.9 hp (11.1 kW) continuous at 7,000 RPM and peak torque of 20.0 Nm (14.7 lb-ft) at 2,500 RPM, measured with the stock muffler. It runs from 2,000 to 8,000 RPM, with average brake specific fuel consumption of 524 g/kWh (0.86 lb/hp-hr).
The standard DA-215 is a carbureted engine built for radio-controlled aircraft. HFE International converts it to electronic fuel injection for unmanned aircraft, adding an engine control module, fuel pump and ignition tuned for UAV duty. The EFI system corrects for altitude and cylinder head temperature, protects against overheating, logs data on board and reports telemetry over CAN bus and RS-232. The specifications on this page are for the HFE EFI version.
Any grade of pump gasoline, mixed 40:1 with Red Line two-stroke oil. There is no heavy-fuel option for the DA 215 at this time. For JP-8 or Jet A operation, HFE International supplies AIE Wankel rotary engines designed for heavy fuel.
A 3-cell (3S) or larger LiPo battery. The ECM draws 1 A peak, about 12 W at full throttle, so each 1,000 mAh of battery capacity gives roughly one hour of running.
Yes. The optional 500 W starter alternator drives directly on the crankshaft and pairs with a 500 W power management unit that includes a starter controller, so the engine can start remotely. The PMU supplies three lines: 24 to 28 VDC at 12.5 A (350 W max), 12 to 15 VDC at 9 A (108 W) and 4.8 to 8 VDC at 8 A (42 W). Custom alternators are available on request.
Yes, as an option. The Mil Spec EFI package uses Currawong premium EFI hardware, is rated from -10°F to 120°F (-23°C to 49°C) and runs 400 hours between overhauls. The Currawong ECM is tested to MIL-STD-810 and adds cold-temperature operation to -40°C (-40°F), EMI and ESD filtering and RF shielding. Contact HFE International for configuration and pricing.
About HFE International
Founded in 2010, HFE International designs and manufactures propulsion systems for UAVs, unmanned systems and ground support equipment at its 10,000 sq ft facility in Tucson, Arizona. HFE has produced over 2,000 systems, now in service across 28 countries, and supplies defense and government customers including the United States and Canadian Armed Forces. The company holds AS9100D and ISO 9001:2015 certification, and its range covers fuel-injected and rotary engines for gasoline, multi-fuel and heavy-fuel operation.
Additional information
| Power | 11.1 kW, 14.9 hp continuous at 7,000 RPM |
|---|---|
| Standard Operating Speed | 2,000 RPM to 8,000 RPM |
| Voltage | 10 V to 15 V |
| Power Draw | 1 Amp peak, 1 hour/1,000 mAh |
| Displacement | 215 cc, 13.1 ci |
| Max Torque | 20.0 Nm, 14.7 lb-ft at 2,500 RPM |
| Average BSFC | 524 g/kWh, 0.86 lb/hp-hr |
| Weight (ECM) | 100 g, 3.53 oz |
| Weight (Engine With Throttle Body) | 4.94 kg, 10.9 lb |
| Weight (Fuel Pump) | 150 g, 5.29 oz |
| Weight (Ignition) | 145 g, 5.11 oz |
| Weight (Wire Harness/Fuel Lines) | 250 g, 8.82 oz |
| Fuel | Any grade pump gasoline, Red Line two-stroke oil at 40:1 |
